 Berichttitel: best way to change piston rings?
BerichtGeplaatst: do 26 jun, 2014 19:02
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
what is the best way to replace worn out piston rings? do i need to take out the motor? or can i get to it from underneath? thank you for the help!
-gregor

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Share on FacebookShare on TwitterShare on DiggShare on DeliciousShare on Google+
Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: do 26 jun, 2014 20:49
Site Admin
Site Admin
Avatar gebruiker
 WWW  Profiel

Geregistreerd: zo 29 aug, 2004 2:18
Berichten: 2505
Woonplaats: Hengelo (OV)
You won't need to remove the engine. You do need to remove quite a lot though (but nothing more than you would when you would take the engine out).
If you remove the cilinder head and the oilsump (oilpan?), you can access the pistons. From the underside, you can remove the bolts and then the pistons can be removed on the top.
Putting them back in requires a piston ring compressor (or a DIY solution) and a lot of oil.

_________________
MurpHY rijdt: weinig | LEiPiE heet ook wel Ewald


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: vr 27 jun, 2014 3:05
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
LEiPie-

that is great news! i wonder, does the exhaust system all need to come off? or should i leave the manifold where it sits attached to the cilinder head and just take off the silencer and the "j"pipe? i JUST replaced the half moon shaped cork gaskets on the carterpan (oilpan) so i know how that goes, any other things to look out for? thanks!
-gregor

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: do 03 jul, 2014 16:07
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
i am starting this work this week. the handboeken is very helpful. now...how to convert the torque settings? very excited to get the bus running again soon!
-gregor

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: do 03 jul, 2014 17:21
HY Forum Grootmeester
HY Forum Grootmeester
Avatar gebruiker
 Profiel

Geregistreerd: do 07 aug, 2003 14:53
Berichten: 2771
Woonplaats: Delft
Do you mean the conversion from kg/m to N/m? 1 kg/m is about 10 N/m.


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: zo 06 jul, 2014 5:48
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
i think the problem is not the rings. i think it is the cilinderkop koppakking.
what do you think? this is before i cleaned it:

Afbeelding


this is after i cleaned the scale off of the kleppen:

Afbeelding


this is the nummer 4 cilinder ,looks like the koppakking is bad. is that grey oil on the front of nummer 4 from a leaky head gasket?
Afbeelding


there does not appear to be any bad scratching inside the cilinder.


here is the cilinder:
Afbeelding

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: zo 13 jul, 2014 15:05
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
i need a new cilinder head :cry:

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: wo 16 jul, 2014 1:28
Site Admin
Site Admin
Avatar gebruiker
 WWW  Profiel

Geregistreerd: zo 29 aug, 2004 2:18
Berichten: 2505
Woonplaats: Hengelo (OV)
Why would you say that? Are there any cracks in it or so?
A photo will help :)
From the previous pictures it looks like the head gasket (koppakking) might have been leaking, but they are often dirty after so many years, so I can't really tell. The rust next to the cilinder is not that bad, just an indication that the cooling water either had no additives (thus, plain water maybe), or has not been refreshed in a long time... that can cause rust in the cooling system.

I've read everything back, but I can't find what the symptoms are that you wanted to fix by changing the piston rings.
Does the motor use a lot of oil? Does it produce thick black/blue smoke in the exhaust? 'cause that would be the main reasons to change the piston rings.

The more symptoms you describe, the better :)

_________________
MurpHY rijdt: weinig | LEiPiE heet ook wel Ewald


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: wo 16 jul, 2014 3:43
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
LEiPiE schreef:
Why would you say that? Are there any cracks in it or so?
A photo will help :)
From the previous pictures it looks like the head gasket (koppakking) might have been leaking, but they are often dirty after so many years, so I can't really tell. The rust next to the cilinder is not that bad, just an indication that the cooling water either had no additives (thus, plain water maybe), or has not been refreshed in a long time... that can cause rust in the cooling system.

I've read everything back, but I can't find what the symptoms are that you wanted to fix by changing the piston rings.
Does the motor use a lot of oil? Does it produce thick black/blue smoke in the exhaust? 'cause that would be the main reasons to change the piston rings.

The more symptoms you describe, the better :)


i removed the heads and replaced the gasket with no problem, except two. the first problem was that when i tightened the bolt that holds the oil tube to the front of the head( on the block behind the 'bobine') it stripped out! the second problem came when i tightened the nut that holds the exhaust valve rocker arm (uitlaatkleppen) in place for cylinder nummer 1,it also was stripped. i was very, very careful to not over tighten them but i guess it is just old metal? the valves are rough and worn in on the faces, since this is the case i have decided that its best to just get a new one and return this one to the warehouse in heez.the original problem was a persistent white smoke from the oil fill cap on the head and also a lot more white smoke from the exhaust. it got worse over the past few months , the power is fine ,although i havent yet done a full compression check, i figure i might as well just rebuild the whole motor and then it will run well for many more years :P i hope. it made no difference at all after i put the new koppakking in. it ran just as well and sounded great when i first fired it up, but the smoke was still there! i was pretty happy i put it all back together and it started on the first try! but sad to see the same smoke :cry: oh well!

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: wo 16 jul, 2014 23:19
HY Forum Grootmeester
HY Forum Grootmeester
Avatar gebruiker
 WWW  Profiel

Geregistreerd: do 04 sep, 2003 23:59
Berichten: 1701
Woonplaats: Asten (N.B.)
1) before placing a new cylinder head gasket you need to have de cylinder head sharpened
2) white smoke means the cooling water mixes with the engine oil and finally gets into the cylinders - due of a damaged cylinder head gasket (take a look into the filling opening of the engine oil: it will look like "mayonnaise") and/or a damaged surface of the cylinder head
3) bolt of the oil tube: often breaks down. need a new one
4) exhaust valve rocker arm: maybe possible to remove the old stud and put a new one instead ?
Others: maybe better indeed to order a restaurated/renewed cylinder head. There are many more parts in this head wich have to be renewed ... wich would mean a long technical story overhere.
As probably you won't have all particular special technical parts/tools needed to recover the cylinder head properly you (like many of us !) 'll have to let it over to the specialists overhere in the Netherlands.
Over all it seems to be a rough car but it (specially the motor etc.) still needs a lot of accuracy !
Success !

_________________
http://www.youtube.com/watch?v=-B-nGoOZGP4
"Dikke Bertha" (B.M.W. R75/5/1972)"Otje" (HY/1981)"d'Eend" (2CV6 Special/1977)"Valérie" (AZU 250/1974) Munfiets (Simplex herenfiets/1948)


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: vr 18 jul, 2014 2:41
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
Otje schreef:
1) before placing a new cylinder head gasket you need to have de cylinder head sharpened
2) white smoke means the cooling water mixes with the engine oil and finally gets into the cylinders - due of a damaged cylinder head gasket (take a look into the filling opening of the engine oil: it will look like "mayonnaise") and/or a damaged surface of the cylinder head
3) bolt of the oil tube: often breaks down. need a new one
4) exhaust valve rocker arm: maybe possible to remove the old stud and put a new one instead ?
Others: maybe better indeed to order a restaurated/renewed cylinder head. There are many more parts in this head wich have to be renewed ... wich would mean a long technical story overhere.
As probably you won't have all particular special technical parts/tools needed to recover the cylinder head properly you (like many of us !) 'll have to let it over to the specialists overhere in the Netherlands.
Over all it seems to be a rough car but it (specially the motor etc.) still needs a lot of accuracy !
Success !


dank u! i will send it to citroenhyteam , i will put up more pictures of the work! :lol:

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: zo 20 jul, 2014 4:19
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
gebroken zuigerveer cilinder nummer vier! pictures soon.
-gregor

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: zo 20 jul, 2014 5:15
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
Afbeelding
cilinder #4

but it is stamped #1 ?! :?
Afbeelding

the first cilinder ring( zuigerveer?) was in two pieces

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: zo 20 jul, 2014 5:35
HY Forum Expert
HY Forum Expert
 WWW  Profiel

Geregistreerd: ma 23 jul, 2012 17:34
Berichten: 104
any trick to remove the "sleeves" of the cilinder? tap out from underneath? i don't want to harm the block!

_________________
'79 HY78, 80 HY 78,'74 HY 72,'88 rhd 2cv,'75 2cv truckette,'69 volkswagen
'81 Moto Guzzi, '67 BSA, '78 Honda 350, '79 Batavus Regency, '81 Benelli Mini Enduro, '80 Garelli
-lelijke Amerikaan


Omhoog


Offline
 Berichttitel: Re: best way to change piston rings?
BerichtGeplaatst: ma 21 jul, 2014 1:18
HY Forum Grootmeester
HY Forum Grootmeester
Avatar gebruiker
 WWW  Profiel

Geregistreerd: do 04 sep, 2003 23:59
Berichten: 1701
Woonplaats: Asten (N.B.)
Gregor:

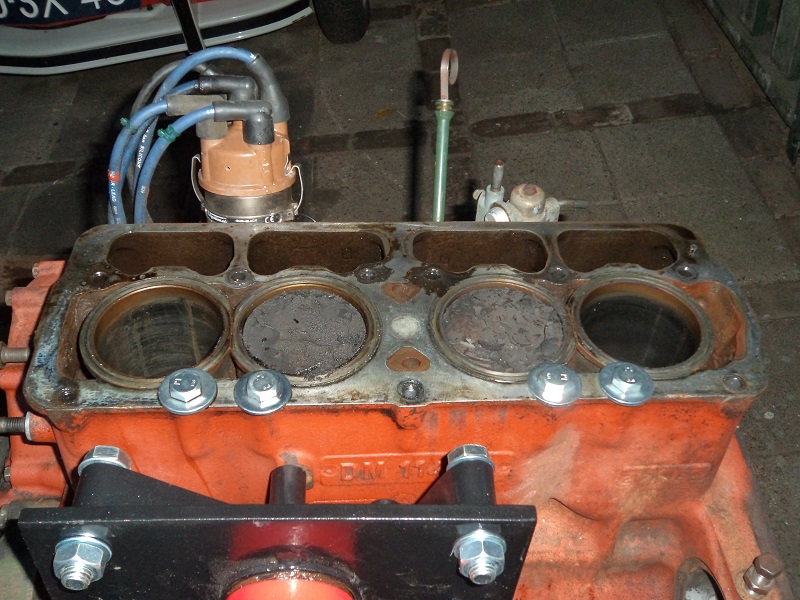

you didn't secure the cylinders before pulling out de pistons ? (see second photo)
Because now you might losen the foot gasket of the cylinders and then you 'll have to renew them too !
You will notice that all first cylinder rings (and maybe more !) will be broken with an engine that old. As far as I know there are no special tools for placing the cylinder rings, so: (carefull) hand job ...
And, as Leipi wrote:
Citaat:
Putting them back in requires a piston ring compressor (or a DIY solution) and a lot of oil.

But ... a little "handyman" finds his own solution ! (see first photo) With a large hose clamp ...
Succes !
Gert


Bijlagen:
DSC00707.jpg [ 201.43 KiB | 6172 keer bekeken ]
DSC00550.jpg [ 213.07 KiB | 6172 keer bekeken ]
